Fracsal II crosslinking additive consists of a specifically sized, sparingly-soluble borate crosslinking agent suspended in a hydrocarbon based carrier fluid. A standard concentration for Fracsal II is 1.0 gal per 1,000 gal of fracturing fluid with crosslink times ranging from 3 to 5 minutes depending upon the pH, temperature, and type of polymer-based fracturing fluid system. Fracsal II packaging can be customized to meet specific requirements.
| Appearance: | Tan Liquid |
| Specific Gravity: | 1.15 - 1.20 |
| Pour Point, ASTM D97: | -26.7°C (-16°F) |
| Flash Point, ASTM D93: | 79.4°C (175°F) |
| Solubility: | Dispersible in water |

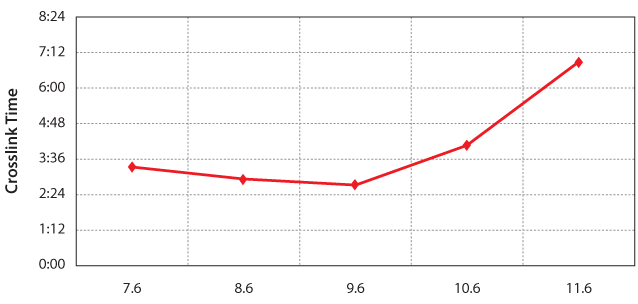

| pH | 7.6 | 8.6 | 9.6 | 10.6 | 11.6 | |
|---|---|---|---|---|---|---|
| Static Top, min:sec | 3:17 | 3:03 | 2:47 | 4:04 | 6:52 | |
| Guar Base: | 2% KCl |
| Polymer Concentration: | 40 lb/1,000 gal |
| pH, adjusted with NaOH: | 7.6 - 11.6 |
| Temperature: | 24.4°C (76°F) |
| Viscosity, 300 rpm: | 38-42 cP |
|
PATENT PENDING |
