Fracsal Waterbase MP consists of a specifically sized, sparingly-soluble borate crosslinking agent suspended in an aqueous solution. The standard concentration for Fracsal Waterbase MP is 1 to 3 gal per 1,000 gal of fracturing fluid. Crosslink times range from 2 to 6 minutes, depending upon the pH, temperature, and type of polymer-based fracturing fluid system. Fracsal Waterbase MP packaging can be customized to meet specific requirements.
| Appearance: | Tan Liquid | |
| Specific Gravity: | 1.25 - 1.28 | |
| Pour Point, ASTM D97: | 3°C (37.4°F) | |
| Solubility: | Water | |
| LC50, 96-hour: | 1,000,000 ppm | |
| Chemical Oxygen Demand: | 65.2 mg/L | |
| Biological Oxygen Demand: | <2.0 mg/L | |
| BTEX, S.W. 8260: | Below detection limit of 1 ppb | |
| D50 - Microtox Testing: |
| Product | Test | EC20 | EC50 | PASS/FAIL |
|---|---|---|---|---|
| Fracsal Waterbase® MP | MTX - Threshold MTX - Confirmation @ 170 L/m3 |
70 L/m3 (50 - 80) 48% (39 - 60) |
170 L/m3 (150>200) >91% |
Not applicable PASS |

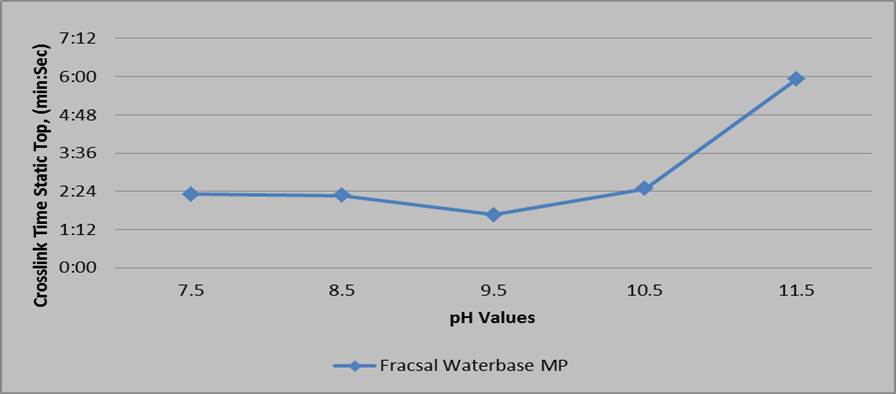

| pH | 7.5 | 8.5 | 9.5 | 10.5 | 11.5 |
| Static Top, min:sec | 2:18 | 2:16 | 1:40 | 2:29 | 5:55 |
| Guar Base: | 2% KCl |
| Polymer Concentrarion: | 40 lb/1,000 gal |
| pH: | 7.5 - 11.5 |
| Viscosity, 300 rpm: | 38 - 42 cP |
| Crosslinking Additive Concentration: | 1.2 gal/1,000 gal |
| Temperature | 25°C (77°F) |
| Guar Base: | 2% KCl |
| Polymer Concentrarion: | 25 lb/1,000 gal |
| pH: | 11.8 |
| Viscosity, 300: | 20 cP |
| Crosslinking Additive Concentration: | 1.5 gal/1,000 gal |
| Temperature | 93.0°C (250°F) |
| Pressure: | 400 psi |
