FRACSAL WATERBASE® HM
DESCRIPTION
Fracsal Waterbase HM is formulated as three separate products, Fracsal Waterbase HM1, Fracsal Waterbase HM2, and Fracsal Waterbase HM3, each product with a different crosslink time. The Fracsal Waterbase HM series consists of a specially sized, sparingly-soluble borate crosslinking agent suspended in an aqueous solution. Fracsal Waterbase HM series contains a supplemental additive as a scale inhibitor or iron control. Typical usage concentrations for all Fracsal Waterbase HM products is from 1 to 3 gal per 1,000 gal of fracturing fluid with crosslink times ranging from 1 minute to 3.5 minutes depending upon the pH, temperature, and type of polymer-based fracturing fluid system. Fracsal Waterbase HM packaging can be customized to meet specific requirements.
PHYSICAL PROPERTIES
| Frascal Waterbase: |
HM1 |
HM2 |
HM3 |
| Supplemental Additive: |
Iron Control |
Scale Inhibitor |
Iron Control and Scale Inhibitor |
| Appearance |
Tan liquid |
Tan liquid |
Tan liquid |
| Specific Gravity (g/mL): |
1.3- 1.33 |
1.14-1.16 |
1.22-1.25 |
| Pour Point, AsTM D97: |
-6°C (21.2°F) |
-9°C(15.8°F) |
-12°C(10.4°F) |
| Solubility: |
Water |
Water |
Water |

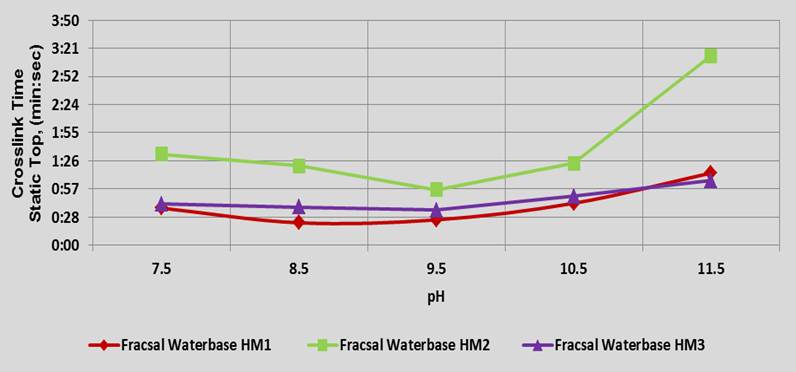

CROSSLINK TIMES AT VERIOUS pHs
| Product |
pH |
| 7.5 |
8.5 |
9.5 |
10.5 |
11.5 |
| Fracsal Waterbase HM1¹ |
0:38 |
0.23 |
0.26 |
0:43 |
1:14 |
| Fracsal Waterbase HM2² |
1:33 |
1:21 |
0:57 |
1:24 |
3:14 |
| Fracsal Waterbase HM3² |
0:42 |
0:39 |
0:36 |
0:50 |
1:06 |
CROSSLINK TIMES TEST PARAMETERS
| Guar Base: |
2% KCl |
| Polymer Concentrarion: |
40 lb/1,000 gal |
| pH: |
7.5 - 11.5 |
| Crosslinking Additive Concentration¹: |
1.6 gal/1,000 gal |
| Crosslinking Additive Concentration²: |
2.4 gal/1,000 gal |
| Temperature |
25°C (77°F) |

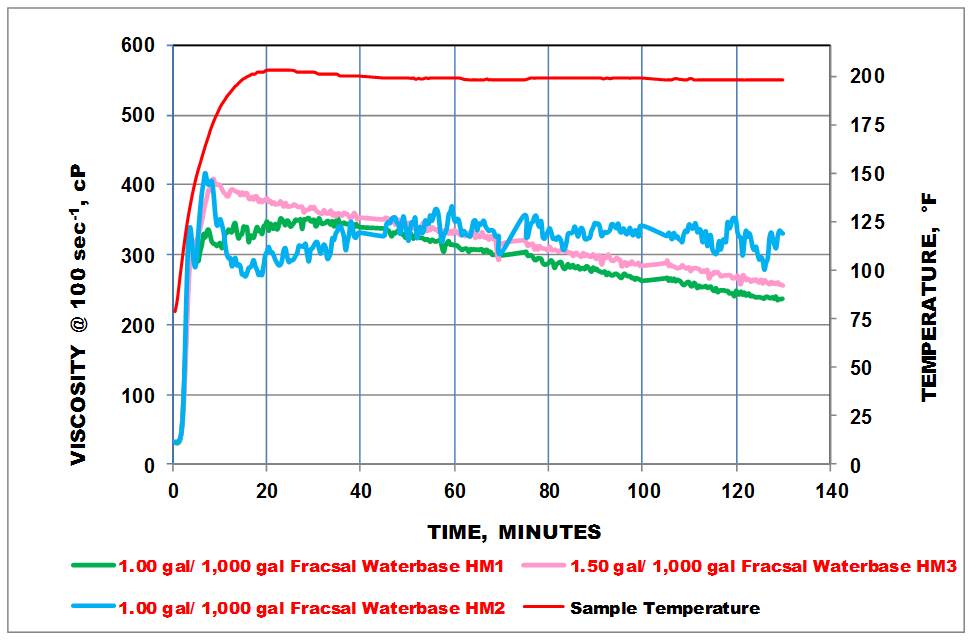

VISCOSITY VERSUS TIME
VISCOSITY VERSUS TIME TEST PARAMETERS
| Guar Base: |
2% KCl |
| Polymer Concentrarion: |
25 lb/1,000 gal |
| pH: |
11.8 |
| Viscosity, 300 rpm: |
20 cP |
| Crosslinking Additive Concentration: |
1-1.5 gal/1,000 gal |
| Temperature |
93.0°C (200°F) |
| Pressure: |
400 psi |
